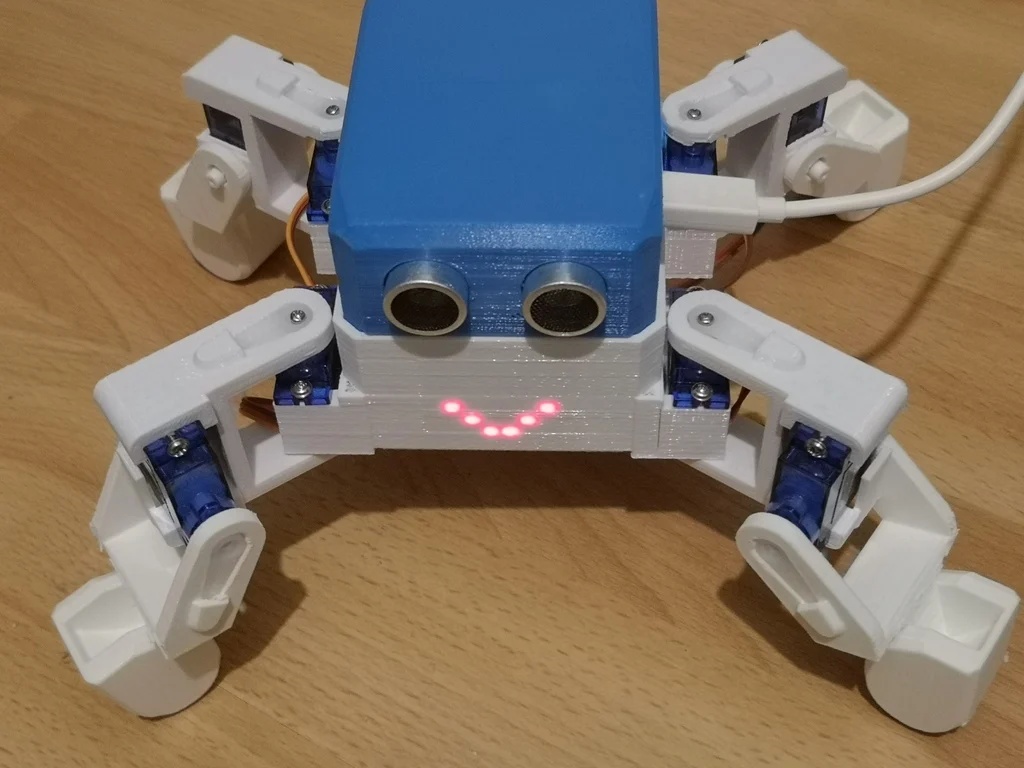

OTTO DIY remixed with MINI KAME = OTTO QUADParts required for Otto Quad,8 x SG90 SERVOS1 x Arduino NANO (atmega328 version)1 x Arduino NANO I/O shield1 x HC SR04 ultrasonic module1 x MAX7219 dot matrix moduleFemale to female hook-up wires1 x 5V buzzer1 x HC-05 Bluetooth module (optional for use with Android APP)1 x LIPO battery 3.7volt and a suitable DC-DC converter module ESSENTIAL as this robot needs at least 2Amps at +5voltI also used a GSTDUINO PCB (instead of the Arduino Nano and shield, OPTIONAL)This is a work in progress, the sketch and Android APP will change as I work on perfecting the functionalityYou will to print:1 x Head (two versions available, Nano I/O shield and GSTDuino)1 x Body 7 A (body)2 x M-Hips (Legs)2 x M-Hips SHAFTS (Pins 4 needed in total)1 x M-Body SHAFTS (pins 4 needed in total)2 x Single_foot_typeA2 x Single_foot_typeB (feet).
