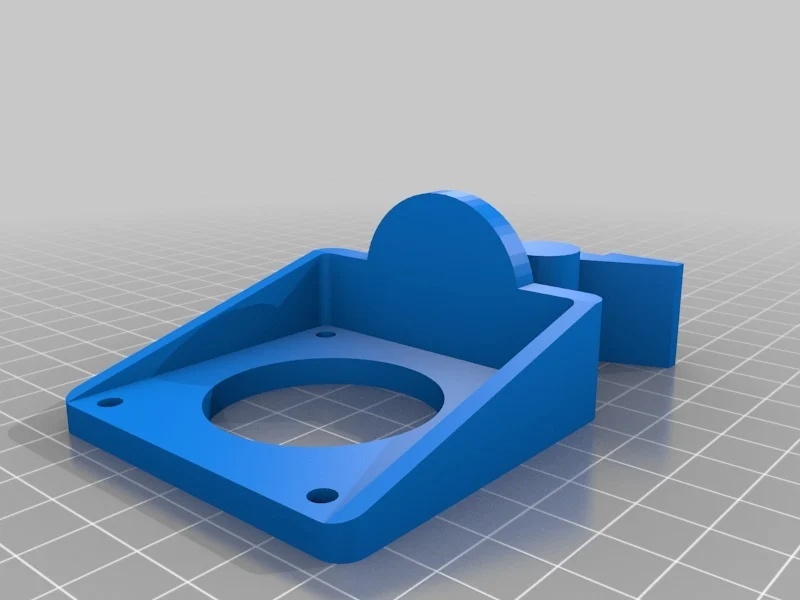

Based on http://egg-bot.com/Thank you guys for the projectI used:2 Nema17 stepper motor 17HS24081 Arduino UNO or NANO2 Keyes stepper motor shield with drivers a4988 or CNC Shield V41 Servo SG90The development of models was carried out taking into account printing without supporting materialYou will need several M3 screwsOne spring3 M3 nutsHairpin and two nuts M5Bearing 625zzAluminum rod 6mm, 2x120 mm + 2x200 mm or moreThreaded rod M5, length 70-80mmTwo screws for fastening the servo motorThis development makes it easy to adapt the machine to the right sizeUp to 80mm in diameterFor better retention of the egg, use the suction cupsIt can be children's toys or otherTesting:https://www.youtube.
