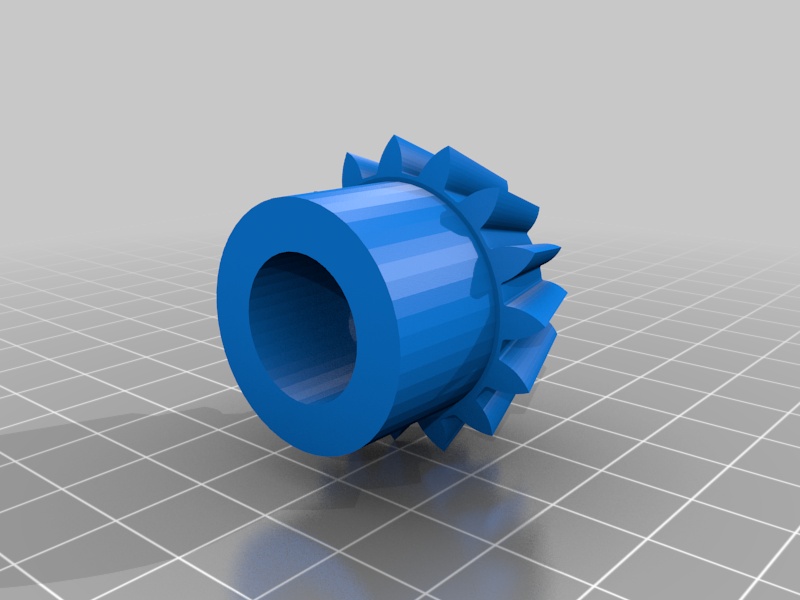

straight bevel gearPinionModule: 2, Number of teeth: 15, pressure angle: 20, face width: 14, Hub diameter: 25.3, mounting distance: 60, nominal shaft diameter: 15StrightModule: 2, Number of teeth: 45, pressure angle: 20, face width: 14, Hub diameter: 40, mounting distance: 40, nominal shaft diameter: 25I used standard to design those gearsRatio 1:3Printing:I used PLA to print Mine but you can pick whatever you want !!layer height used 0.2mm is more than enough for the straight but u can go smaller for the pinion (the small one) as 0.
