Tripod Assembly for wall drawing robot (XY plotter)
Description

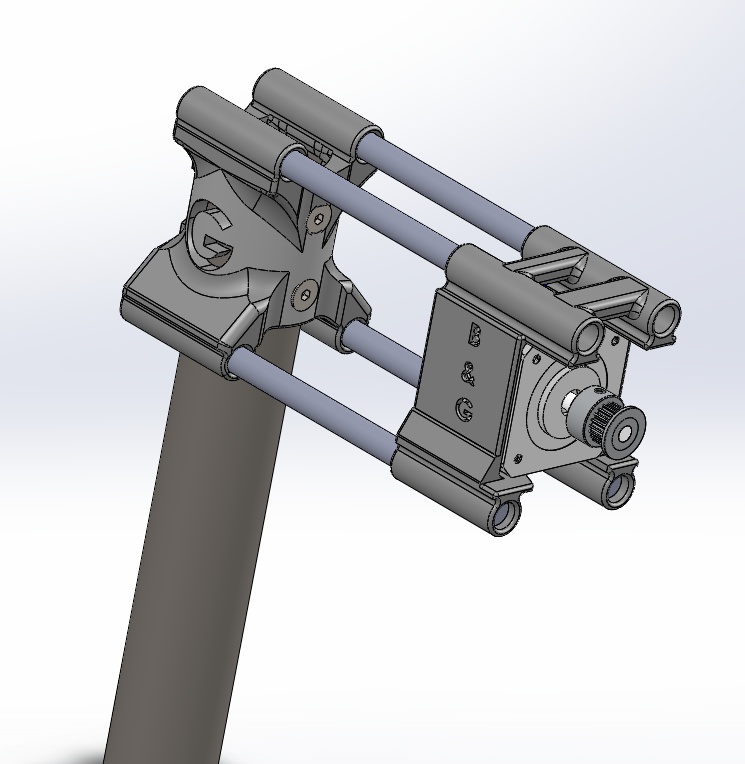

To hold the NEMA 17 motor on the tripod we designed 2 brackets, first one is fixed on the tripod itself & the second one is to hold the motor, and we connected them using an 8mm steel rod to adjust the distance between them.The diameter of the tripod is 32mm.This is a part of the project "Wall Drawing Machine Using Tripod and Polargraph"To see the full project:https://www.
