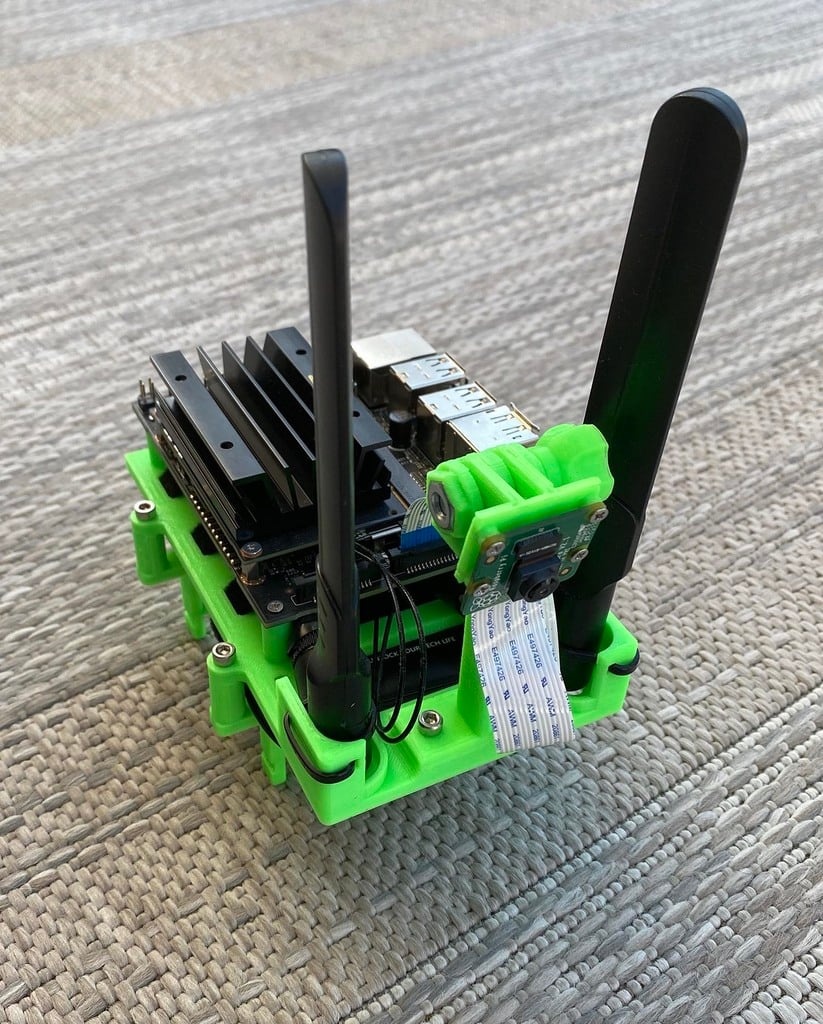

This project is a basic tray to mount a Nvidia Jetson Nano developer kit computer. It consist of the tray to support the Jetson Nano with posts, mounting holes to be attached to a robot, or another device, and slots to mount accessories with velcro straps.Features:Main tray to support the Jetson Nano computer (4 screws M2 x 6mm Phillips)2 WiFi Antennas can be mounted on the front with zip ties (with holes to attach it vertically or the antenna base can be folded and goes under the Jetson Nano)Camera mount support on the frontCamera post with Go Pro style of baseMini knob to attach camera (1 screw #10-32 x 1 in and nut)Raspberry Pi camera mount that can be attached to the camera post (4 screws M2 x 6mm Phillips, 2 screws M3 x 13mm socket head, and 2 M3 nuts)Slots on the base to attach extra components (like a battery) with velcro straps4 mounting holes (M3) for attaching the tray to a robotThe files include 2 versions, one with the main tray and camera post separated, or you can print them both in one piece.
